• Grille, color-keyed bar and grille surround

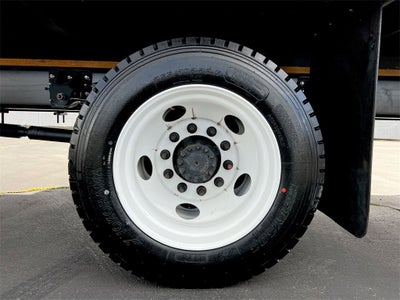

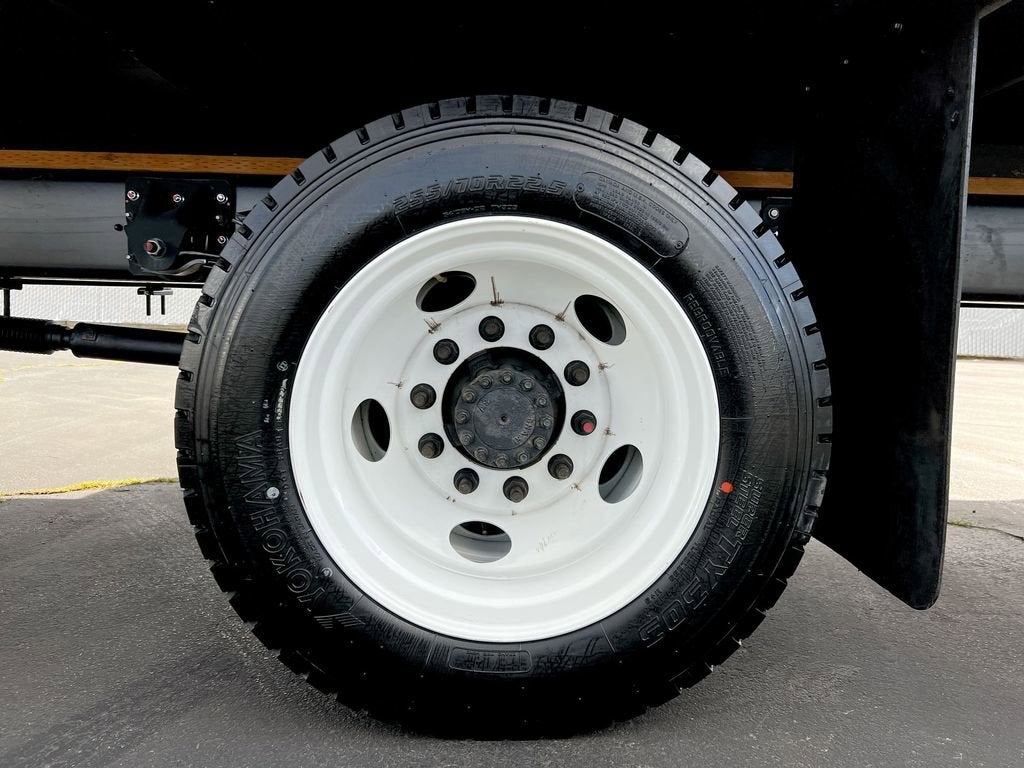

• Wheels, 22.5 x 8.25 steel, painted white (STD)
• Grille, Silver
• Tires, Front, LT225/70R22.5 low profile LRR (low rolling resistance) tubeless steel belted radial. Front Highway tread. (Standard on 6500 XD model, not available on 7500 XD model.) (STD)
• LED Headlamps
• Glass, tinted
• Tires, Rear, LT225/70R22.5 low profile LRR (low rolling resistance) tubeless steel belted radial. Rear Highway traction tread. (Standard on 6500 XD model, not available on 7500 XD.) (STD)
• Tires, Rear, LT225/70R22.5 low profile LRR (low rolling resistance) tubeless steel belted radial. Rear Highway traction tread. (STD)
• Tires, Front, LT225/70R22.5 low profile LRR (low rolling resistance) tubeless steel belted radial. Front Highway tread. (STD)
• Arc White
• Wheels, 22.5 x 8.25 steel, painted white (STD)
• PIO, Mirrors, outside left-hand and right-hand dual cab-mounted exterior with convex mirrors for 102" wide body. Heated flat and convex with remote controls for flat mirrors (Port Installed Option)

• Lighting, interior dome
• Windshield washer bottle access, underhood

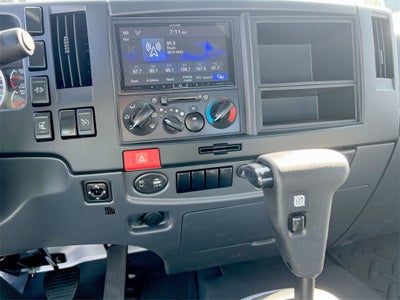

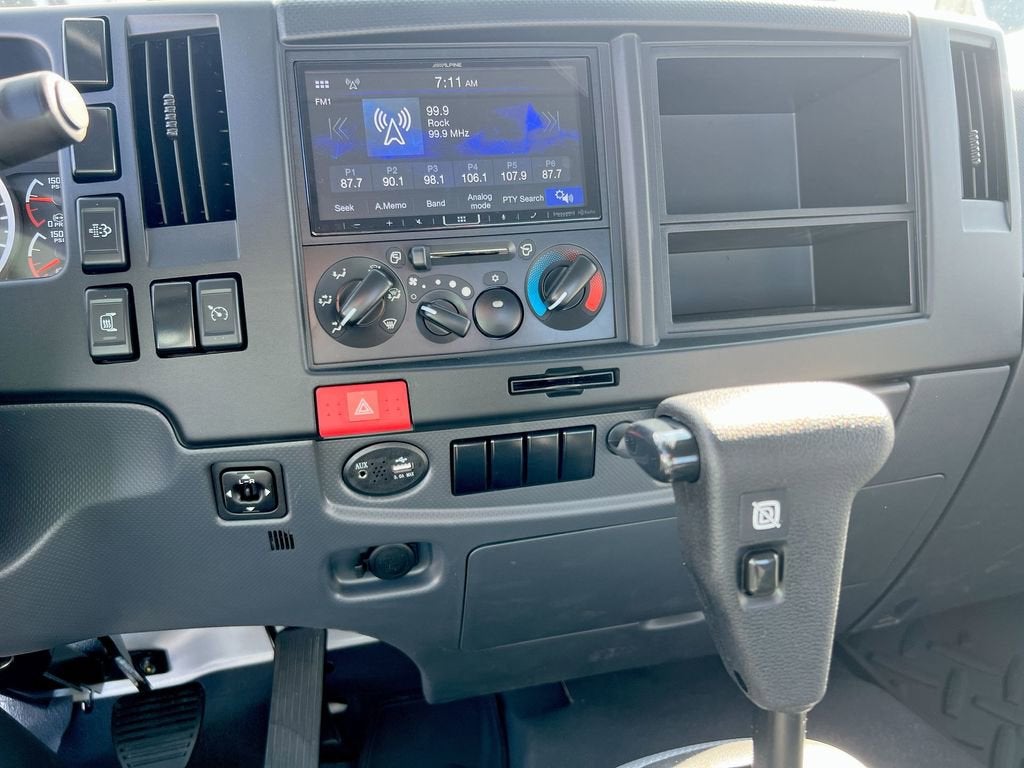

• Air conditioning, single-zone manual, integral in-dash mounted

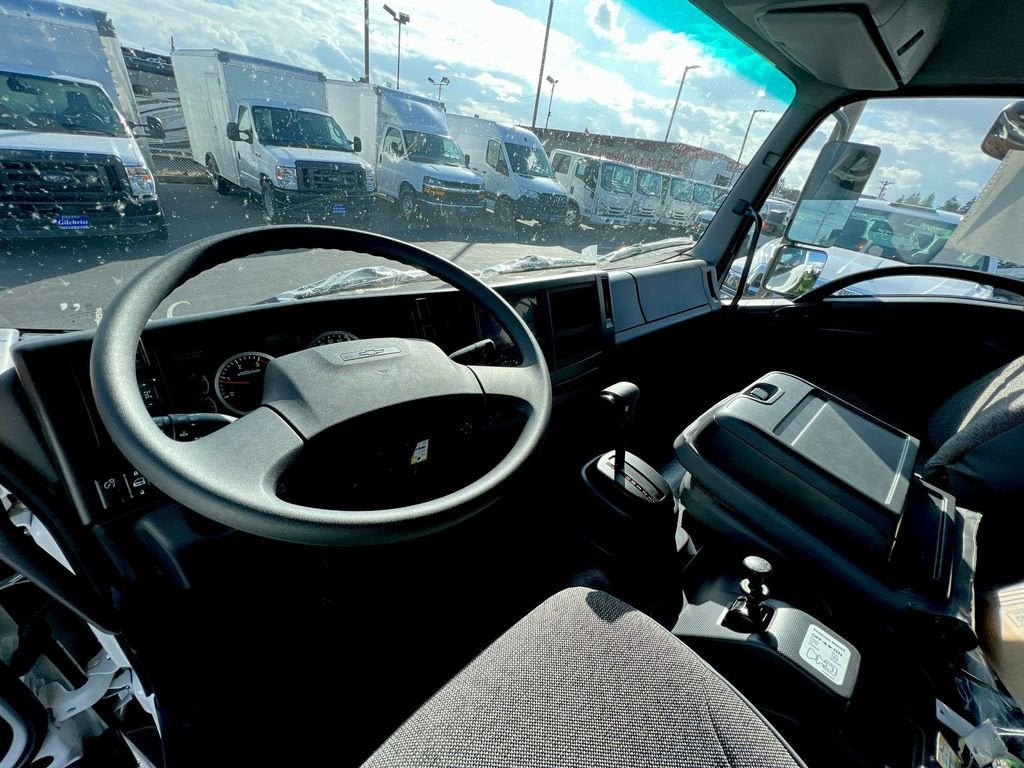

• Steering wheel, urethane
• Floor mats

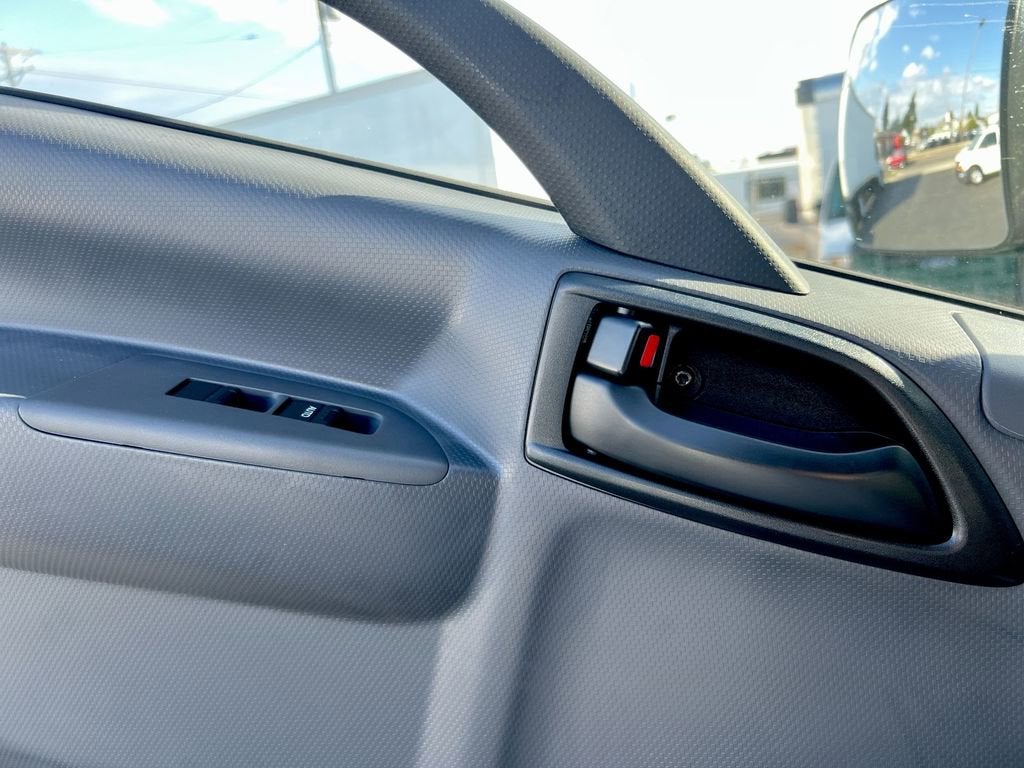

• Windows, power

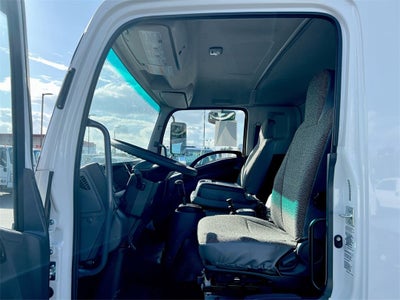

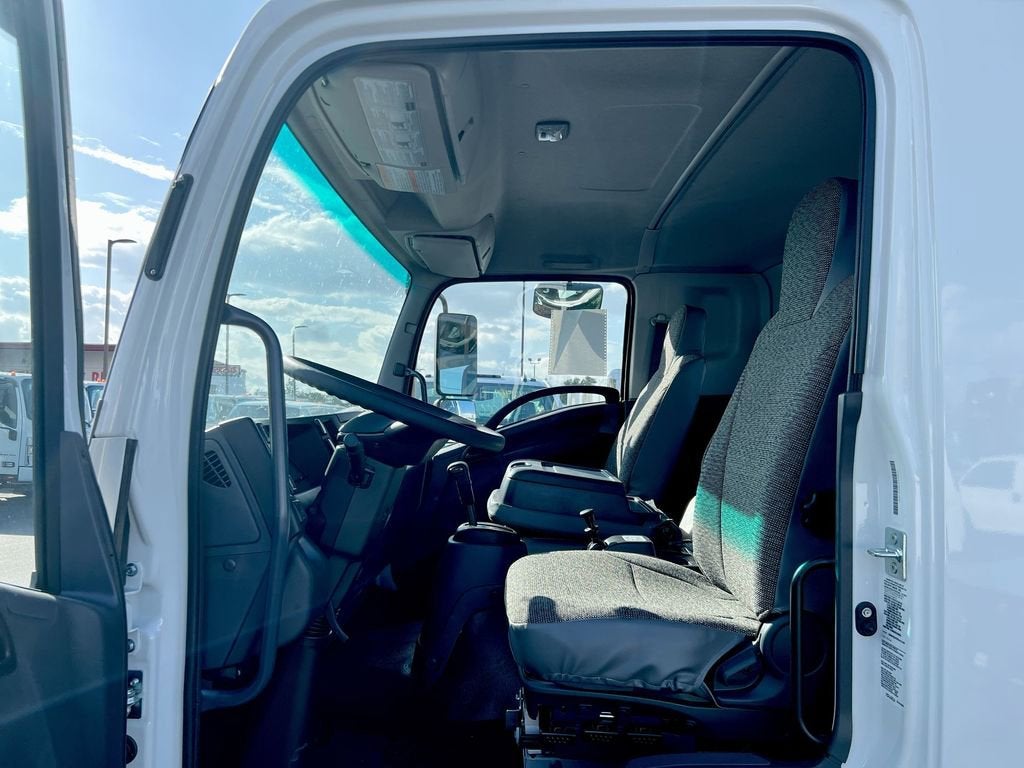

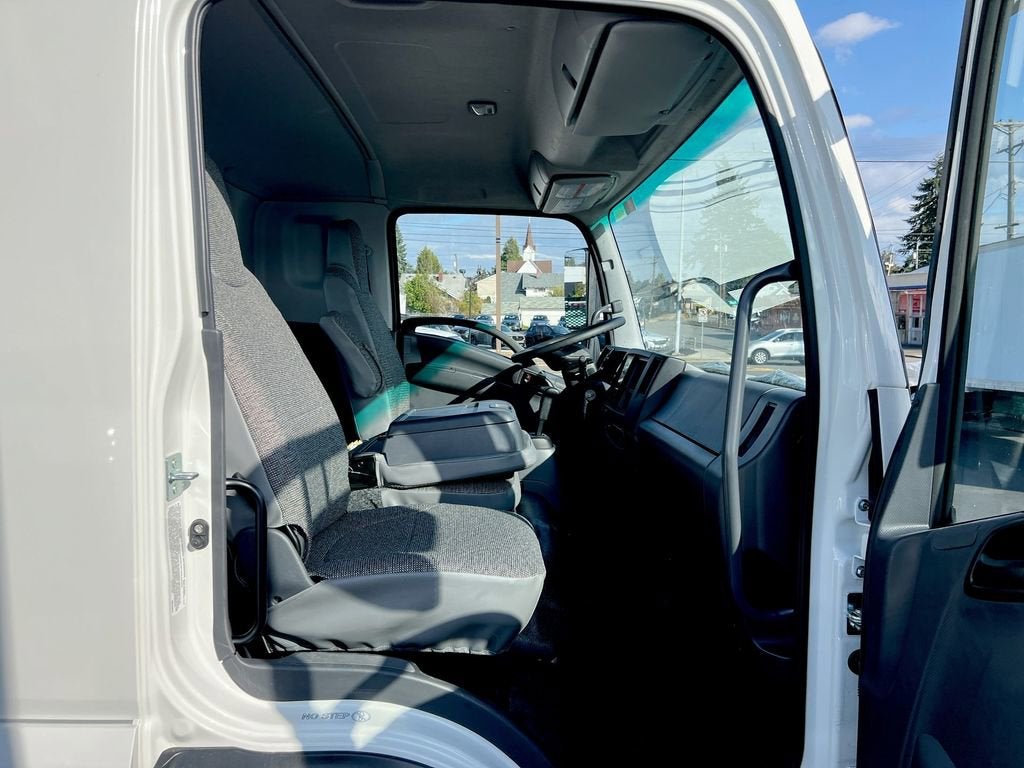

• Seat, high back driver only air suspension system and fixed passenger seat (STD)

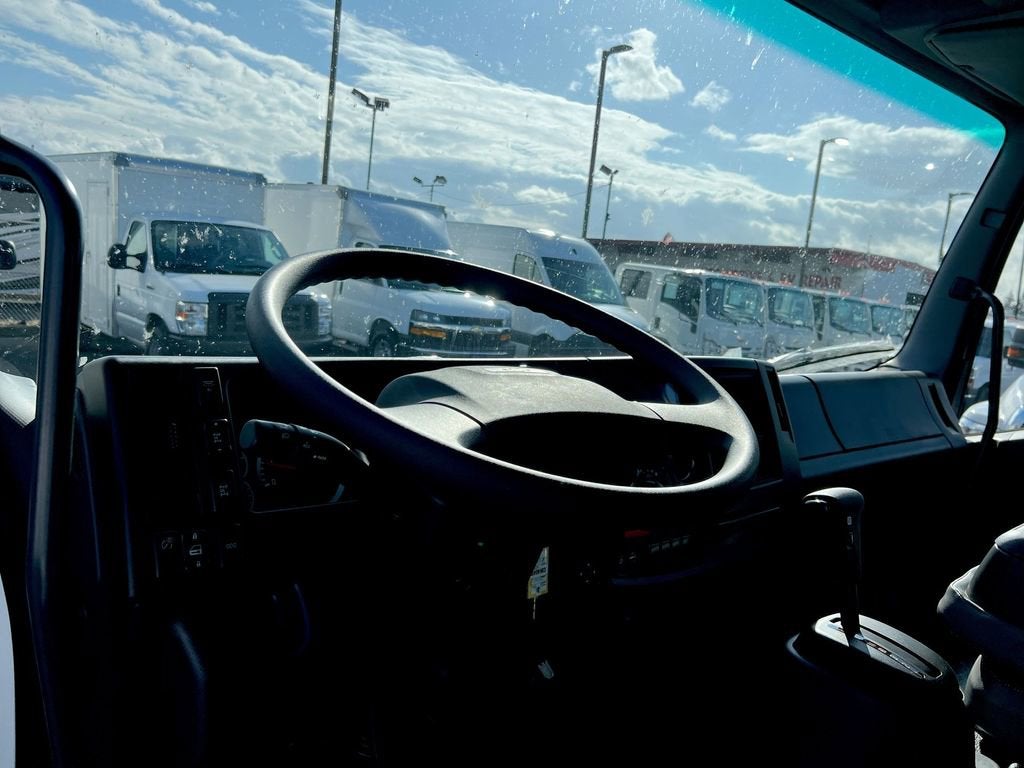

• Steering column, Tilt-Wheel and telescoping steering column
• Cup holders
• Cruise control, electronic, automatic
• Seat trim, Cloth

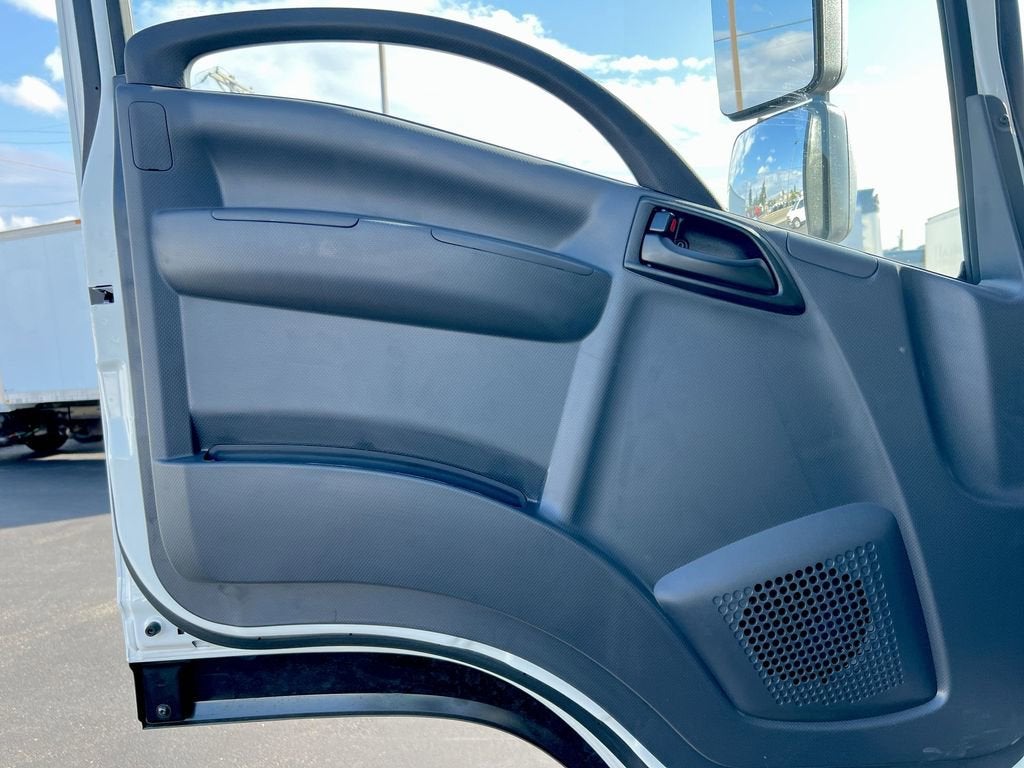

• Storage, door pockets
• Storage, seatback pockets
• Door locks, power
• PIO, Extra Set of Keys provides customer with a total of 4 keys, (Port Installed Option)
• Medium Ash Gray, Cloth Seat Trim
• Seat, high back driver only air suspension system and fixed passenger seat (STD)
• PIO, Rear dome and body lamp switch (Port Installed Option)
• PIO, Seat-cover protector, provides protection for all seating positions (Port Installed Option)
• PIO, Remote Keyless Entry (Port Installed Option)

• Vehicle Application Truck
• Battery, dual 750 cold-cranking amps, 12 volt, maintenance free with threaded post
• Rear axle, 19,000 lbs. (8618 kg) R050, full-floating single-speed with oil lubricated rear wheel-bearings, Dana Spicer 19060S (Standard and only available on 6500 XD model.)
• Incomplete vehicle certification
• Drivetrain, rear-wheel drive
• Fuel Tank, 100 Gallon, (378L), rectangular aluminum fuel tank mounted on left hand frame rail. Fuel water separator with indicator light.
• Exhaust, single horizontal outlet
• Front suspension, 12,000 lbs. (5450 kg) tapered leaf semi-elliptical steel alloy. Includes shock absorbers with stabilizer bar

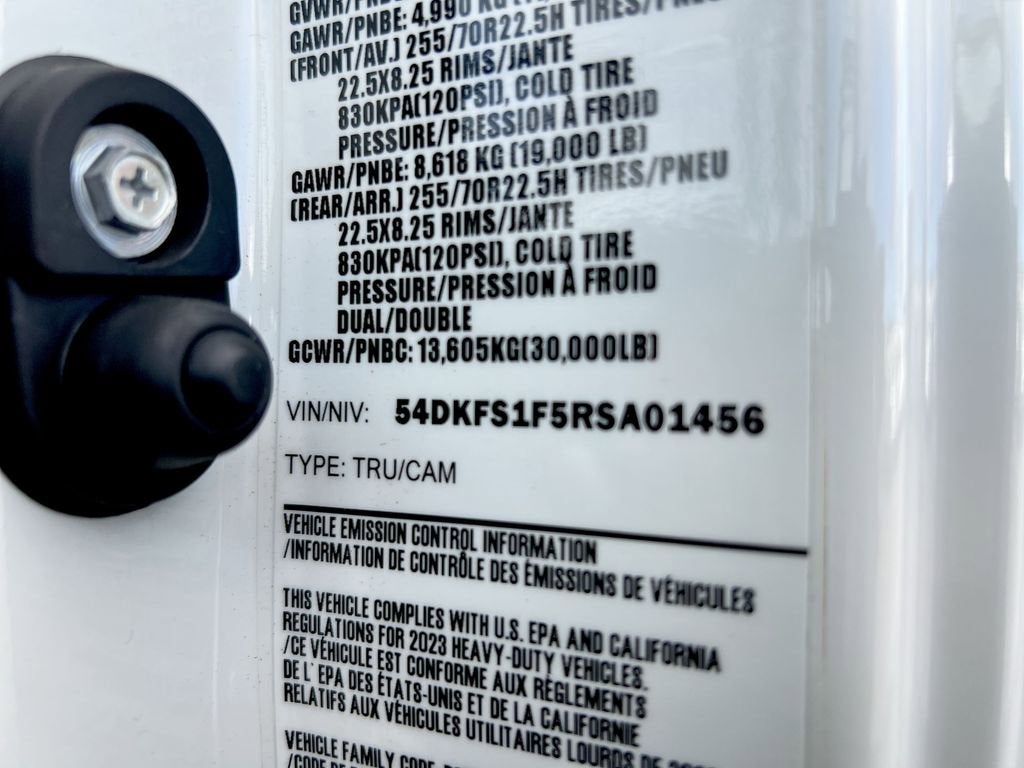

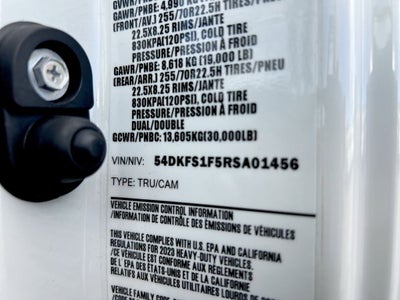

• GVWR, 25,950 lbs. (11,770 kg) (Standard on 6500 XD model and available on 7500 XD model.)
• Wheelbase, 224" (569 cm)
• Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide. Yield strength 80,000 psi, section modulus 12.69 cu.in. and RBM 1,015,000 lb-ft/in per rail.
• Rear axle, 4.88 ratio (Standard and only available on 6500 XD model.)
• Brakes, dual circuit full air drum brakes with 4 channel anti-lock brake system
• Front axle, 12,000 lbs. (5,450 kg), Dana E-1254-W
• Rear Suspension, 21,000 lbs. (9525 kg), semi-elliptical steel alloy bolted multi-leaf and shock absorbers
• Air cleaner, heavy-duty, 11" diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
• Alternator, 160 amps
• Exhaust brake
• Rear axle, 4.88 ratio
• Emissions, Federal certification, with a 5 year/100K mile warranty. Standard on all models

• Preferred Equipment Group includes standard equipment

• Ocean Freight Surcharge

• Daytime Running Lamps

• PIO, Rear Vision Camera (Port Installed Option)
• PIO, Fire extinguisher, 5.0 lb. Dry chemical BC rated and Safety reflector triangle kit (Port Installed Option)

• Park brake, air-controlled, spring-type

Preferred Equipment Group

• DriveType
• DriveType: Rear Wheel Drive
• Fuel Economy
• City: 0
• Hwy: 0
• Combined: 0
• Fuel System
• Fuel System: Direct Injection
• Fuel Tank Capacity
• Fuel Tank Capacity: 100 gal
• Fuel Type
• Fuel Type: Diesel Fuel
• Horse Power
• Horse Power: 260
• Rear Wheel
• Rear Wheel: Dual
• Trailering Capacity
• Trailering Capacity: 0
